Hammond Manufacturing: 1418LP Series Type 4/12 Mild Steel Wallmount Enclosure – Less Panel

pbus 86 hammond 1418lpseries 1200

April 6, 2026

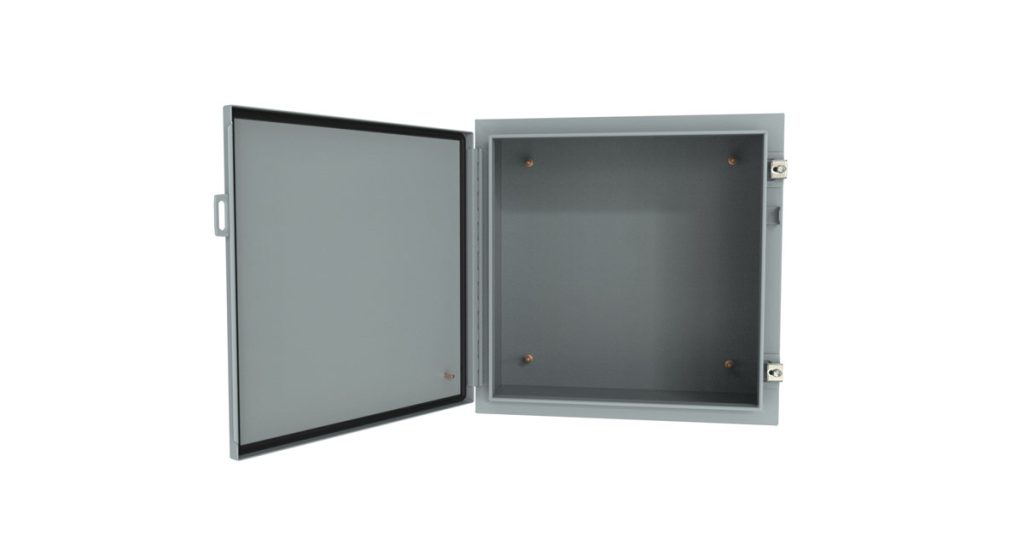

Introducing the 1418LP Series Type 4/12 mild steel wallmount enclosure without inner panel, from Hammond Manufacturing. These enclosures are designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes, or terminal wiring enclosures. They provide protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Standards

  • UL 508A Type 3R,12, 4
  • cUL Type 3R, 12, 4
  • Complies with
    • NEMA Type 3R, 4, 12 and 13
    • IEC 60529, IP66

Construction

  • Formed 14 gauge steel bodies and doors.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Door stiffeners are provided in the larger enclosures for extra rigidity.
  • Welded brackets provide for enclosure mounting.
  • Formed lip on door and enclosure exclude flowing liquids and contaminants.
  • Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
  • Door is secured with easily operated stainless steel clamps.
  • Provision for padlocking.
  • Seamless poured-in place gasket.
  • Collar studs are provided for mount­ing optional inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
  • A literature pocket is provided for the inside of the door.
  • Note – Inner panel sold separately.

Finish

  • Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
