Thermoelectric Cooling for Outdoor Kiosks


By: Andrew Dereka, Product Director at Laird Thermal Systems

Outdoor kiosks have grown in popularity in a wide variety of applications and sectors, including banking, entertainment, retail, showrooms, industrial and education. You see kiosks everywhere, from banks and airports, to theme parks and train stations. Often located outdoors, kiosks and the sensitive electronics they contain are subjected to extreme temperatures, from the cold of winter to the heat of summer. Ambient temperatures can exceed 40°C or below 10°C. Heat loads for the electronics themselves can range from 20 to more than 200 Watts. These extreme temperatures and heat loads can often exceed the operating temperature limits of the sensitive electronics inside, which in turn can affect their functionality and lifespan.

In addition, the demand for higher telecommunication speeds and computing power through 4G/5G networks and always-on broadband services places a huge demand on the kiosk infrastructure. It’s the combination of the outdoor environmental conditions and the continuous operating heat load on these systems that result in the generation of a substantial amount of heat within the enclosure. To ensure all-time availability, cooling systems are necessary to protect the electronics inside.

Compressor-based air conditioning systems have traditionally been used for heat removal in outdoor kiosks. However, they can be noisy and occupy a large amount of space. Also, government regulations, particularly in EU, are making it more difficult to specify a solution since ozone depleting refrigerants are being phased out over the next several years. Natural refrigerant alternatives are expensive with limited flexibility to transport via air. Standard air-to-air heat exchangers can be more efficient, but they are often too large to fit inside the kiosk and cool to a few degrees above worst case ambient temperature. This can be a problem for sensitive electronics or batteries with operating temperature limits.

Cooling systems for use in outdoor kiosks must meet rigorous requirements to withstand outdoor conditions. These requirements might include NEMA 4, humidity and salt spray testing. They may also include more specific issues such as preventing water, dust and wind-driven rain from entering the cooling system. In some cases, the cooling system must provide seismic resistance, corrosion and fire resistance, or shock and vibration resistance. Seals, gaskets, connectors and fans within the cooling system must provide specified NEMA seal ratings.

Thermoelectric Solutions for Outdoor Kiosks

Thermoelectric cooler assemblies offer an alternative to compressor-based cooling systems for kiosk enclosures. With the ability to cool well below ambient, Thermoelectric cooler assemblies protect electronics inside enclosures from heat, while limiting moisture exposure and other contaminants from the outside environment.

At their core, thermoelectric coolers use thermoelectric coolers which are solid-state heat pump devices that pump heat via the Peltier effect. During operation, DC current flows through the thermoelectric cooler to create heat transfer and a temperature differential across the module. One side of the thermoelectric cooler is cold, while the other side is hot. A heat absorption and heat dissipation mechanism are connected to the thermoelectric cooler, which are usually heat sinks.  The cold side heat sink absorbs heat from inside the cabinet, while the hot side heat sink rejects heat to ambient environment. The most common type of thermoelectric cooler assembly is an air-to-air configuration. Fans are used to increase the air exchange between hot and cold side to maximize heat transfer.


Thermoelectric cooler assemblies offer several advantages over alternate cooling technologies including:

  • Compact form factor
  • Solid-state construction providing robust reliability with few moving parts
  • Ability to heat and cool resulting in precise temperature control
  • Environmentally friendly as no hazardous CFC refrigerants are used

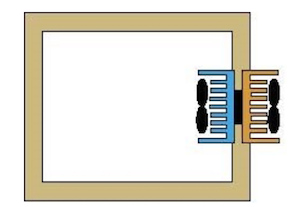

Thermoelectric cooler assemblies are usually mounted on the side of the kiosk enclosure and exhaust the heat load directly to the outside or ambient environment. Thermoelectric cooler assemblies can be used to control temperature of the entire Kiosk or a compartment within the Kiosk where sensitive electronics are located. This requires a smaller thermoelectric cooler assembly solution and reduces the overall unit costs. However, proper ventilation is required to assure the hot side air is getting out to ambient environment.

By reversing the polarity on the thermoelectric cooler, thermoelectric cooler assemblies can heat as well and offer precise temperature control. The ability to heat can be useful in winter time where temperatures can drop below the lower temperature limit of the sensitive electronics or batteries. This also eliminates the need for a resistant heater that would be used in traditional compressor based systems lowering costs.

With fewer moving parts in the system, thermoelectric cooler assemblies offer a lower cost of ownership. Almost no maintenance is required. For areas where a lot of dust occurs, a filter is recommended and on occasion heat sinks should be cleaned with compressed air to remove dust. This assures a more efficient cooling system with long life operation.
Thermoelectric cooler assemblies can maintain temperature between two temperature set points with the use of a bi-directional controller. This controller can turn on the thermoelectric cooler assembly to cool once the upper temperature limit has been reached and turn off a few degrees below the temperature set point. Similarly, the controller can turn on and heat once the low temperature limit has been reached and turn off a few degrees above this limit. A hysteresis setting is used in conjunction with the temperature limit set points to set the desired degrees the thermoelectric cooler assembly will be on during the heating and cooling mode.

Outdoor Cooler Series from Laird Thermal Systems

Laird AA-230 Series
        Laird Thermal Systems AA-230 Outdoor Cooler Series

Laird Thermal Systems offers the Outdoor Cooler Series, which is a rugged, compact air-to-air thermoelectric cooler assembly product family designed for cooling and heating critical electronics in outdoor kiosks. They run on an open loop at nominal voltages of either 24 or 48 VDC, within a wide operating temperature range from -40°C to +55°C. Cooling capacities range from 100 to 480 Watts and are mountable with appropriately sized hardware. The optional bi-directional controller, SR-54 which cool and heat to specific set point temperatures is sold separately. The fans can be controlled once steady-state is reached to reduce noise.

Laird AA-250 Series
AA-250 Outdoor Cooler Series


The custom-designed heat exchangers use air-ducted shrouds and brand-name fans to further improve energy efficiency. Flexible cold-side air ducts can be oriented in any direction to accommodate obstruction within the kiosk and to maximize circulation.  In addition to the traditional vertical mounting, horizontal mounting is now possible, providing the ability for compartment cooling.

The compact design and optional mounting features allow the thermoelectric cooler assembly to be installed in a specific section of the kiosk to cool vital components or batteries in that compartment. This compartment will need to be thermally insulated to protect against outside temperatures. Keeping the electronics and thermoelectric cooler assembly separated from the rest of the enclosure can reduce the cooling capacity requirements due to lower heat load removal.



The Outdoor Cooler Series does not use compressors or CFC refrigerants, providing environmentally friendly solid-state operation. The solid-state construction offers a cooling solution that requires much less maintenance than compressor-based systems. The heat pumping action is produced by thermoelectric coolers that achieve a high coefficient of performance (COP) to minimize power consumption. The entire product series was designed to pass Telcordia test requirements.

Cooling and heating of critical electronic components or batteries in outdoor kiosks is necessary to maintain long life operation with almost no maintenance. Thermoelectric cooler assemblies provide a reliable and cost-effective alternative to traditional cooling solutions. They offer a high cooling performance in a compact footprint and are environmentally-friendly, which eases concerns with new government regulations, particularly coming from the EU, regarding removal of ozone depleting refrigerants.
