Enhancing Crane Safety with Pfannenberg’s PA X 5-05 Signaling Solution

November 15, 2024

By: Jacob Vernon, Product Manager, Audible and Visual Signaling

Ensuring safety in port operations is paramount, especially when it comes to heavy equipment like Rubber-Tired Gantry (RTG) cranes. At a large east coast ocean and inland river port, the need for reliable safety signals became critical as their existing equipment frequently failed due to environmental challenges. To address this, Pfannenberg’s PA X 5-05 signaling solution was implemented, offering a more durable and effective system to enhance safety and reduce costly maintenance. This article explores how the PA X 5-05 transformed safety protocols and operational efficiency for the port’s RTG crane operations.

A Problem with Safety

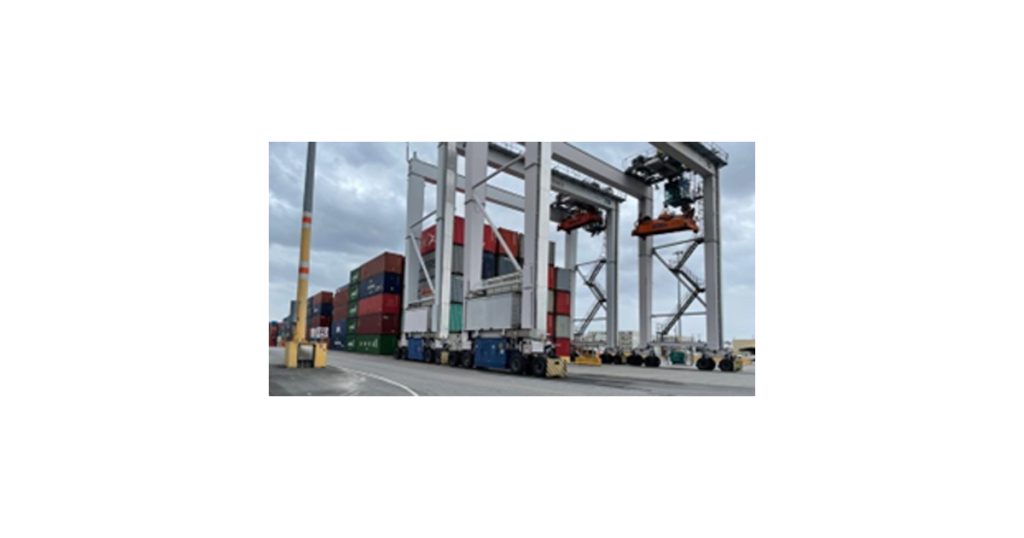

Before Pfannenberg stepped in, this river port operator faced a recurring challenge with the safety equipment on their Rubber-Tired Gantry (RTG) cranes. These cranes, essential for moving containers across the terminal, were equipped with horn and light safety devices on each leg to alert nearby workers when the RTG was in motion. However, water intrusion was leading to frequent failures of the light and strobe units, creating high maintenance costs and increasing the potential for accidents due to the equipment’s unreliable signals.

With 288 RTGs this port operator needed a robust solution that could withstand outdoor conditions and deliver consistent performance. The frequent failure of existing signaling units was not only costly but also posed significant risks to worker safety. This situation also contributed to operational inefficiencies, as RTG cranes could not be used safely when the signaling system malfunctioned, leading to unplanned downtime at the port. What this port operator needed was a highly durable and efficient signaling solution designed specifically for harsh industrial environments.

The Pfannenberg Solution: PA X 5-05

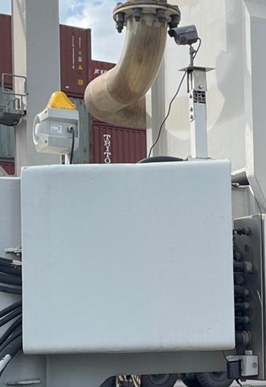

Pfannenberg’s PA X 5-05, part of their Patrol series of sounder and light combination devices, was introduced to solve this ongoing issue. This device combines a high-intensity 107 dB(A) sounder with a 5 Joule strobe light, ensuring that workers are alerted to the crane’s movements both audibly and visually. What sets the PA X 5-05 apart is its exceptional durability and ability to withstand environmental challenges. The unit is IP66-rated, meaning it is fully protected against water and dust, solving the exact problem that had been plaguing the port operator’s RTGs.

Additionally, the PA X 5-05 is designed to operate in a wide range of temperatures, from -40°C to +55°C, making it suitable for use in both cold winters and hot summers at the port. This extreme durability ensures that the device continues to perform reliably, regardless of weather conditions. The inclusion of pre-wired components also makes installation easier and faster, reducing the downtime required for installing new units on the cranes.

Key Advantages of Dual Signaling

One of the key advantages of the PA X 5-05 is its combination of audible and visual signaling. Crane operations are often noisy environments, and relying solely on sound or light alone can leave workers at risk. The dual signaling approach mitigates this by offering redundancy; even if noise levels are high or visibility is obstructed, either the sound or the light will still effectively alert personnel to potential danger.

Incorporating visual signals like strobe lights further enhances safety in the port environment. The PA X 5-05’s 5 Joules of flash energy, delivering 60 flashes per minute, ensures that workers can see the signals clearly over long distances, even in the foggy or rainy conditions commonly found in coastal areas. This added layer of visibility is particularly crucial when cranes are operating over large areas where ground personnel may not always be in direct line of sight with the crane operator.

The decibel level of the PA X 5-05’s sounder, which can reach up to 107 dB(A), provides the loudness necessary to penetrate noisy operational environments. The ability to adjust the volume output also ensures that the sounder can be fine-tuned to specific crane locations, making it versatile depending on environmental needs​.

Benefits for the Port Operator

After replacing their older, failure-prone units with the PA X 5-05, the port operator saw immediate benefits. Maintenance costs dropped significantly as the PA X 5-05 units, designed to withstand harsh conditions, proved far more reliable than their predecessors. This reduced the need for frequent repairs and replacements, freeing up both time and resources.

From a safety perspective, the combination of the high-output sounder and strobe light greatly improved the overall alert system. The use of reliable signaling devices minimized the risk of RTG cranes being used without adequate safety signals, a critical factor in ensuring the safety of employees working in busy port yards. Unplanned downtime due to signaling failures was also significantly reduced, boosting overall productivity.

Moreover, the success at this large port didn’t go unnoticed. As word of the effectiveness of the PA X 5-05 spread, other ports also began adopting the system, especially as distributors highlighted the device’s durability and reliability. The widespread adoption of the PA X 5-05 underscores its suitability as the go-to solution for crane safety, particularly in environments where equipment failure and safety risks are not a viable option.

The Future of Port Safety with Pfannenberg

Pfannenberg’s expertise doesn’t stop at providing advanced signaling solutions. They also offer consultation services tailored to port authorities and crane operators, helping them evaluate their signaling needs to reduce downtime, improve safety, and ensure operational efficiency. With Pfannenberg’s guidance, port operators can implement solutions that not only meet industry standards but also address specific environmental and operational challenges.

The implementation of Pfannenberg’s PA X 5-05 on RTG cranes at a large east coast port not only solved a persistent maintenance issue but also significantly improved operational safety. The durability, ease of installation, and superior signaling capabilities of the PA X 5-05 made it an ideal solution for this demanding environment. As more ports adopt this technology, Pfannenberg continues to set the standard for industrial signaling, ensuring the safety and efficiency of crane operations worldwide.


Visit the Pfannenberg website HERE for more information.
