Mouser: TE Connectivity 2.5mm Sealed Signal Double Lock Connectors

December 1, 2020

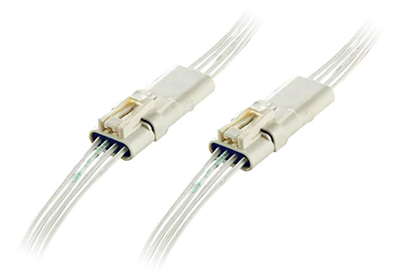

TE Connectivity 2.5mm Sealed Signal Double Lock Connectors offer secondary locking safety combined with IP67 rated sealing protection. A space-saving 2.5mm centerline provides a compact design solution and robust seals enable reliable performance in water-related or high humidity environments. Contacts are on a miniature 2.5mm centerline spacing and accept 26AWG to 20AWG wire.

Rated up to 3A maximum per line, the 2.5mm Sealed Signal Double Lock Connectors include features that are designed to help ease manual assembly including a snag-proof latch, polarized terminals, and an optional TPA (Terminal Position Assurance). Panel mount and free-hanging configurations provide flexible design options for a broad range of applications. Cap and plug housings meet the Glow Wire Test (+750°C, no flame) and UL94 V-0 requirements to meet global industry safety standards.



Key Features-Benefits Bar.jpg

FEATURES

  •    –   IP67 rated protection against water and dust
  •    –   Contacts are on a miniature 2.5mm centerline to provide a compact design solution
  •    –   3A maximum current rating
  •    –   250VAC voltage rating
  •    –   UL94-V0 and Glow Wire Test (+750°C, no flame) to meet global industry safety standards
  •    –   Snag-proof latch provides ease of assembly
  •    –   Optional TPA’s (Terminal Position Assurance) helps ensure proper assembly
  •    –   Polarized lance-less terminals to prevent incorrect insertion reducing assembly errors


APPLICATIONS

  •    –   Major home appliances
    •       –   Refrigeration
    •       –   Laundry (washing machines and dryers)
    •       –   Water heaters
    •       –   Cooking (range hoods)
  •    –   Small home appliances
    •       –   Water purifiers
    •       –   Humidifiers
    •       –   Rice cookers
  •    –   Industrial
    •       –   Refrigeration
  •    –   Power cords
  •    –   Lighting
    •       –   Outdoor
    •       –   Industrial
  •    –   Personal health care
    •       –   Smart toilet seats
  •    –   Lawn and Garden
    •       –   Outdoor tools (lawnmowers and sprinkler system interface)
  •    –   Automotive
    •       –   Battery chargers

Important Links Bar.jpg

https://www.mouser.com/new/te-connectivity/te-connectivity-23219-connectors/
