Lutze: Compact Switches With Intelligent Energy Management

February 2, 2021

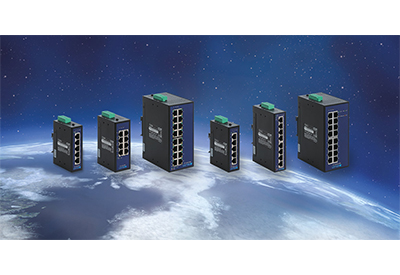

The LÜTZE unmanaged E-CO (Ethernet Compact) switches with 5, 8 or 16 ports are suitable for universal network communication in all conventional Ethernet environments and field bus systems, such as ProfiNet-IO or EtherCAT. In addition to the enhanced performance with QoS (Quality of Services), autonegotiation, autocrossing and an error message for the redundant power supply, the switches also offer an AC/DC wide range supply for DC 12 V to 48 V as well as AC 24 V. The fact that the switches can also run on AC voltage means that they can be integrated easily into building automation applications. Thanks to the sturdy and compact design, including protection class IP30, the switches can also be used in an extended temperature range of -40 °C to +75 °C, making the LÜTZE E-CO Switches well suited for industrial environment applications. The LÜTZE E-CO Switches can be mounted flexibly, either on the DIN hat profile or on the control cabinet wall.

One of the many benefits of the new LÜTZE E-CO Switches include the intelligent energy management. This integrated enhancement ensures the creation of energy-saving Ethernet networks. Energy Efficient Ethernet (EEE) is implemented in compliance with the IEEE 802.3az norm. The result: consistent energy savings compared to conventional switches. Improved ESD (Electro Static Discharge) protection of ± 6 kV DC maximizes the interference immunity and allows its use for more applications.
