Belden: M12 Power High-Performance Solution
May 22, 2025
Make better connections in demanding industrial environments with Belden’s new M12 Power High-Performance Solution.
By adhering to IEC 61076-2-111, Belden meets its performance promise and offers the highest power supply available in the M12 Power range on the market. This range of products has a high current capacity of up to 24 amps per pin at 630 V AC/DC in a compact design that attains such capacity in tight spaces with space-saving S-, L-, K- and T-coded connectors, and protects against dust and water for enhanced reliability with a low, long-term cost of ownership with IP65, IP67 and IP69K-rated connectors.

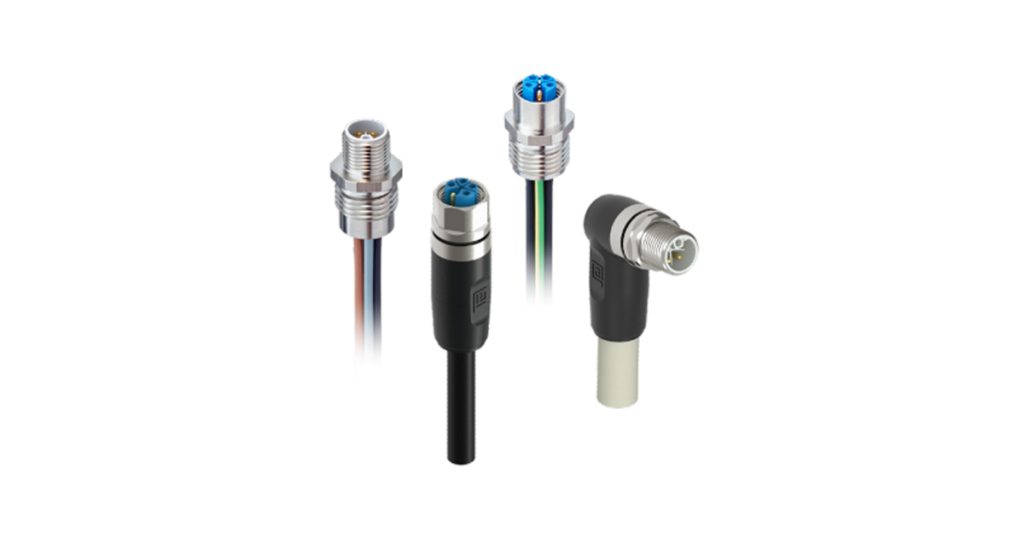

These connectors are offered in various configurations, including straight and angled designs, with or without shielding, and are available in cross sections from 0.75 mm2 to 2.5 mm2.
Your Benefits
Missed connections can cost industrial organizations time, money and opportunity.
With Belden’s compact M12 Power product family, you gain reliable, secure power connections in the harshest conditions where durability, flexibility and high current handling are vital. Aligned to IEC standards, the highquality M12 Power features extended shielding technology, making it suitable for high-demand applications.
Small housing and single-face design for all variants simplify deployment, even in tight spaces, using standard tooling. Quick integration with existing technology enables systems to work in harmony while saving time and minimizing costs.
Applications
This M12 Power solution connects power sources to industrial equipment, facilitating the transmission of electrical power in automation systems, machinery and other industrial applications.
With its robust construction and high current rating, the M12 Power Series supports a wide range of industrial applications, such as automation, robotics and machinery, in a space-efficient way.
Resistant to dust and water, robust connectors reduce downtime and lower maintenance costs, offering a longer operational lifespan for systems that depend on reliable power connections.
Markets
Built to withstand stringent industrial conditions, the M12 Power Portfolio serves the needs of automotive manufacturing, machine building, mass transit, material handling, power transmission and distribution, and rolling stock sectors.
As a testament to its durability and quality, the M12 Power Series conforms to the IEC 61076-2-111 standard for connectors for electrical and electronic equipment and the IEC 60332-1 standard for flame propagation resistance. Additionally, the M12 Power solution has attained relevant Underwriters Laboratories (cULus) and appliance wiring material (AWM 20939) and Canadian Standards Association Flammability Test (CSA FT1).
