Compact and High-Performance – WAGO Power Supply With 30 W in Just 35.5 MM

June 1, 2020

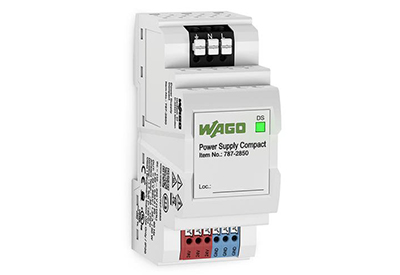

Packing 30 W of performance, WAGO’s Compact Power Supply (787-2850) in a DIN-rail-mount enclosure offers a lot of power in a scant 35.5 mm (1.398″). Thanks to the slim design, it saves around 33% more space in the control cabinet and distribution board than standard power supplies.

1.25 A are available at an output voltage of 24 VDC. With a high efficiency of up to 88%, the new power supply impresses with low power loss.

It can also be mounted overhead or horizontally with derating – advantageous for system distribution boxes in buildings and industry.

At a Glance:

  •   –  Same design and technical features adapted to the new WAGO 3-Phase Power Transducers
         Ideal accessory for the 3-phase power transducers

  •   –  30 watts in a width of 35.5 mm (1.398″)
         Compact and high-performance

  •   –  Meets overvoltage category III
         Stabilized against input-side overvoltages or transients

  •   –  High reliability
         Temperature range of −20 to +70°C, (−4 … +158°F), derating > +55°C (+131°F)
         MTBF per EN/IEC 61709 greater than 2,500,000 hours at +40°C (+104°F)

Important Links Bar.jpg

https://www.wago.com/global/compact-and-high-performance-wago-power-supply
