What NEMA 12 Server Rack Cabinets Ship Quickly for Networking Contractors?
October 13, 2026
Standard wall-mount and freestanding options for industrial networking projects on tight schedules.
The cable is pulled, the equipment is selected, and the installation date is approaching. The last thing you need is a cabinet that holds up the job. But when the project calls for NEMA 12 protection, choosing whatever rack is available is not the answer either.

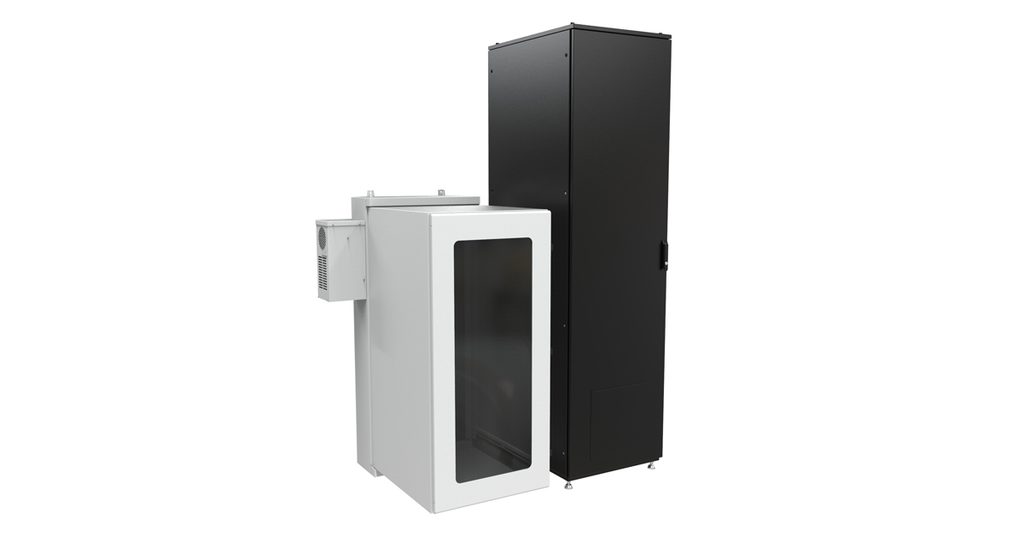

For networking contractors working against a deadline, Hammond’s NWC Series wall-mount cabinets and HDME Series freestanding server cabinets are two standard catalog options to check first. Both are manufactured in North America and designed to protect equipment in demanding industrial environments.
The right choice depends on your equipment, installation location, cooling requirements, and available inventory. For a quick-turn project, start with a suitable standard configuration and confirm its availability before committing to the installation schedule.
NEMA 12 vs. cULus Type 12: Know the Difference
NEMA Type 12 describes the protection; certification verifies it. NEMA publishes enclosure standards but does not test or certify products. A manufacturer can declare compliance, so “NEMA 12” alone does not confirm independent testing.
cULus Listed with a Type 12 rating means the enclosure has been independently evaluated by UL to applicable Canadian and U.S. requirements, with Type 12 protection included in its certification. The distinction is verified compliance, not a higher protection rating.
Before ordering, confirm that the exact cabinet configuration carries the required Type 12 certification, then check stock and delivery with your distributor.
NWC Series: Industrial Network Protection Without Taking Up Floor Space
For a wall-mounted installation, the NWC Series Environmental Wall-Mount Cabinet combines Type 12 protection with practical equipment access. Available in 12U, 18U, and 27U sizes, it provides a 350 lb UL2416 load rating, adjustable 10-32 threaded mounting rails, and a double-hinged design that allows access to the front and rear of installed equipment.
The NWC offers three standard configurations:
- N version: A solid enclosure without climate control or cutouts.
- F version: Includes rear and door filters that maintain the UL Type 12 rating, with compatible fan kits available separately.
- A version: Includes a factory-supplied air conditioner, shipped inside the cabinet for installation.
This gives contractors a starting point for selecting a cabinet around the application rather than requesting a custom enclosure. Choose the configuration based on the equipment cooling needs, then check availability for that exact part number.
HDME Series: More Rack Space for Larger Industrial Installations
When the project requires a floor-standing cabinet, the HDME Series NEMA 12 Server Rack Cabinet provides 42U or 47U of rack space with a 3,000 lb equipment load capacity. Gasketed doors and panels provide environmental protection, while two pairs of adjustable square-hole mounting rails accommodate standard rack-mounted server and network equipment.
The HDME also includes top and bottom gland plates for cable entry, factory-installed leveling feet, and provisions for optional casters. Compatible filter fans and other climate-control accessories are available to suit the installation.
Check usable mounting depth, not just cabinet depth. The catalog lists approximately 31.5-inch and 39.4-inch overall depths, with usable mounting depths of approximately 25.1 inches and 33 inches, respectively. Compare those dimensions with your equipment, mounting hardware, and cable-clearance requirements before ordering.
For larger industrial network deployments, the HDME is a practical starting point when wall mounting is not appropriate.
Do Not Leave Cooling Until After the Cabinet Arrives
Selecting the right cabinet also means selecting the right thermal-management approach. Equipment heat output, the highest expected ambient temperature, and the allowable internal temperature all matter when sizing enclosure cooling.
Filtered ventilation and air conditioning are not interchangeable. Where conditions permit, filtered airflow may be suitable. Where the required internal temperature is below the surrounding air temperature, air conditioning may be necessary. Adding ventilation can also affect an enclosure’s environmental rating, so cooling components must be selected with that rating in mind.
Resolve those requirements before placing the order. Otherwise, a cabinet that arrives quickly may still need additional components or modifications before it is ready for equipment.
Give Your Distributor a Complete Requirement
To help your distributor identify a suitable option without unnecessary back-and-forth, provide three things:
- Equipment requirements. Include rack units, equipment depth, total installed weight, mounting requirements, and space for future additions.
- Installation conditions. Identify wall or floor mounting, environmental exposure, cooling needs, cable entry, and available service clearance.
- Project timing. Provide the quantity, delivery destination, required on-site date, and whether an alternative standard configuration could be considered.
Be specific about what can change. A different cabinet size or door configuration may be worth reviewing, but only when it still meets the project requirements. Availability should guide the selection, not replace the technical checks.
Keep Your Next Installation Moving
A quick shipment only helps when the cabinet is right for the job. Start with the NWC for wall-mounted equipment or the HDME for a freestanding installation, then confirm the complete configuration and availability with your distributor.
