Weidmuller: Multifunctional Timing Relays

October 20, 2020

Timing relays are used in automation technology in order to compensate for errors caused by high clock rates. Short pulses are extended and are reliably identified by downstream control components. Various timing functions such as switch on and off delays, clock generator, and star/delta switch are available to users.

TFI-SERIES – Reliable control of time functions

Compact timing relays for building and factory automation

  •    –   Simple configuration via rotary switches
  •    –   Compliance with international standards according to EN 61812
  •    –   UL approval for the North American market

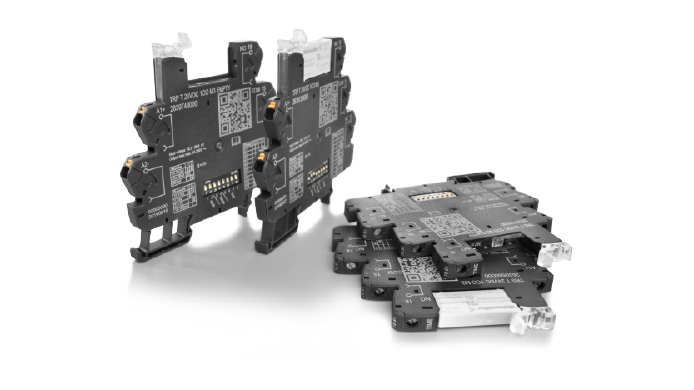

Inte900_95564.pnggration of additional timing functions in 6 mm version

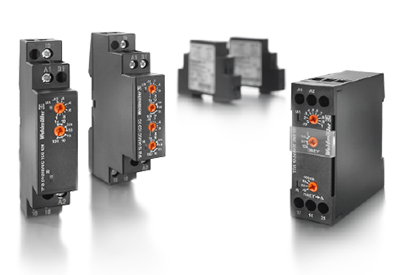

Multifunction timing relay in the TERMSERIES

  •    –   Standard-compliant timing relays according to IEC/EN 61812
  •    –   Simple setting of timing functions and time ranges
  •    –   Discernable display of power supply and switching status
  •    –   Available with screw connection and PUSH IN connection technology


Benefit from Weidmüller services and market experience

Simple planning through software support

Use the Weidmüller Configurator to quickly and easily configure and request our components. The tool supports continuous engineering workflows, from planning with E-CAD systems through to documentation.

Orange Selection

Products of the Orange Selection are always available.

Electronic product data for distribution partner

Electronic catalogue in BMECat and other formats. Fast access to article data thanks to proven standards.
