Weidmuller Unveils Space-Saving TERMSERIES-COMPACT Modules

TERMSERIES-COMPACT
Weidmuller USA’s innovative TERMSERIES-COMPACT module is a versatile all-rounder in terminal-based design.

August 21, 2023

Weidmuller USA has recently unveiled the latest innovation in connectivity for use in all types of industry sectors – the TERMSERIES-COMPACT, a versatile all-rounder in terminal-based design.

These cutting-edge relay modules are incredibly compact with a width of only 6.4mm and a low height, making them a perfect fit for any low cabinet box. Another game-changing feature is the ability to customize them for space-saving needs in applications that require a normally open contact version or a fused relay output version. With TERMSERIES-COMPACT, there’s no longer a need for extra terminal blocks with fuses.

Ultra-compact with a slim, flat design, these relays can be installed anywhere, even in environments with strong vibrations. Since they have the same contours as the tried-and-tested TERMSERIES family, all the accessories of the series can be used for applications such as cross-connections.

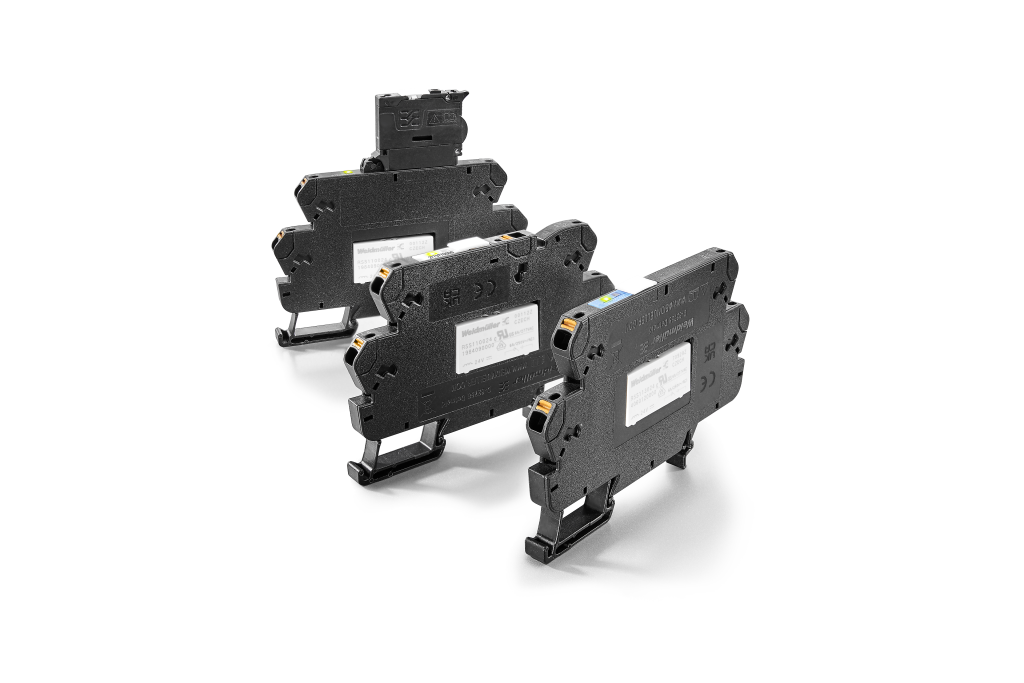

Closeup of the TERMSERIES-COMPACT module developed by Weidmuller USA. These incredibly compact modules are ideal for any low cabinet box and can be customized for other space-saving needs.

“TERMSERIES-COMPACT modules save on components, simplify wiring, and significantly cut down assembly time,” said Carlus Hicks, Director-Cabinet Products Division. “Our patented PUSH-IN connection technology and colored pushers make wiring 75% faster and considerably safer.” Hicks also noted that TERMSERIES-COMPACT modules come in different versions and a variety of input voltages wit 24-230 V UC and 12-80 V UC available for the first time in an extremely compact design. “As a highly flexible connectivity module that’s compatible with the complete TERMSERIES family, TERMSERIES-COMPACT is destined to become the preferred solution for interfacing loads, sensors or signals to different PLC and DCS systems for our industry partners,” he added.
