Mencom 5 Port Ethernet Switch and Panel Interface Solution

Mencom LP1



December 23, 2019

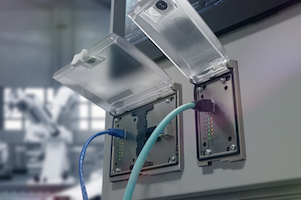

The -E45UM-5 low-profile panel interface connector has an innovative design that frees up valuable DIN rail space by moving the reliable, robust, and cost-effective unmanaged Ethernet switch to the side of the cabinet. By combining the switch with a low-profile panel interface housing, the product allows quick, easy, and secure access to multiple Ethernet components within the control cabinet.  The LP1-E45UM-5 offers one RJ45 port outside the cabinet and 4 RJ45 ports inside the cabinet.

Mounted inside the LP housings, these rugged Ethernet switches can be directly installed on the outside wall of an electrical panel. The external port provides a means for communicating with devices inside the cabinet without opening the cabinet door, mitigating potential safety hazards. (such as Arc Flash) The low-profile housing allows users to not only comply with stringent safety industry regulations but also save time and money by eliminating the need for expensive personal protection equipment (PPE) and licensed electrical technicians to access inside the cabinet. The unmanaged switches can come with other PIC components in three different sizes; one single cover (LP1), two single covers (LP2) and one double cover (LP3).



  • Features four of fast 10/100Base-T(X) RJ45 connectors with broadcast storm protection
  • Certified for Industrial EMC
  • Supports redundant power-input for enhanced safety that can be connected simultaneously to a wide range of DC power sources
  • If one of the power inputs fails, the other live source acts as a backup to provide the power needs automatically
  • Provide a plug-play environment and do not require any complex configuration
  • Operational temperature ranges from -10 to 70 °C



More information on Mencom panel interface connectors

LP1-E45UM-5 Datasheet

LP1-E45UM-5 Product Drawing

Buy Now
