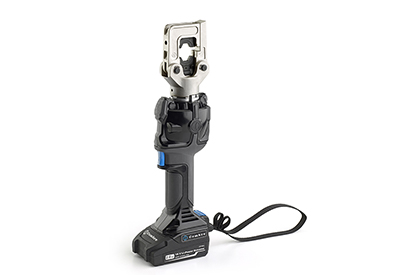

Cembre “Bilinear” Cordless Hydraulic Crimping Tool B500ND


March 25, 2021

B500ND is the first of a new generation of hand-held cordless tools, characterised by a “Bilinear” mechanical design. Equipped with a Smart Release system which automatically retracts the ram at the end of the operating cycle.

B500ND is suitable for crimping electrical connectors onto conductor cross sections up to 600 MCM and uses the die sets common to all Cembre 6 tons tools and heads. Equipped with Li-lon 18 V-2Ah rechargeable high capacity batteries.

Fitted with a maximum pressure sensor for enhanced precision and repeatability of the maximum pressure cycle, and a pressure relief valve providing additional safety for the operator. The Electronic Pressure Sensor (EPS) guarantees the precision of the crimping operation, checking the actual value of pressure and informing the operator about possible errors.

The OLED display provides essential real time operating data, including:

  •    –   generated crimping force thus verifying accordance with best practice
  •    –   battery charge status
  •    –   general operating information
  •    –   the number of work cycles completed and remaining before recommended maintenance.

Weight and balance have been reconfigured to yield improvements in handling and convenience. The more rigid structure of the bi-component plastic body provides greater mechanical protection while its rubber inserts boost operator safety and comfort.

Quieter operation, illumination of the working area via LED lights and a minimum of vibration enhance the tool’s practicality. The integrated memory card enables the user to store data from up to 200,000 compression cycles for transfer to a computer via a USB cable.


Operating features:

  •    –   Bilinear mechanical design
  •    –   Smart Release system to automatically retract the ram at the end of the crimping cycle
  •    –   OLED multifunctional display with touch button
  •    –   Electronic Pressure Sensor (EDS)
  •    –   SMARTOOL technology for viewing and downloading operational data
  •    –   180 degree rotating head
  •    –   Start button protected against accidental operation
  •    –   Manual pressure release button
  •    –   Illumination of working area via 4 x LED lights
  •    –   Bi-component plastic body
  •    –   Ergonomic design for operator comfort
  •    –   Li-lon 18.0 V-2Ah rechargeable high capacity battery
  •    –   Battery connection system with release button


www.cembreinc.com
